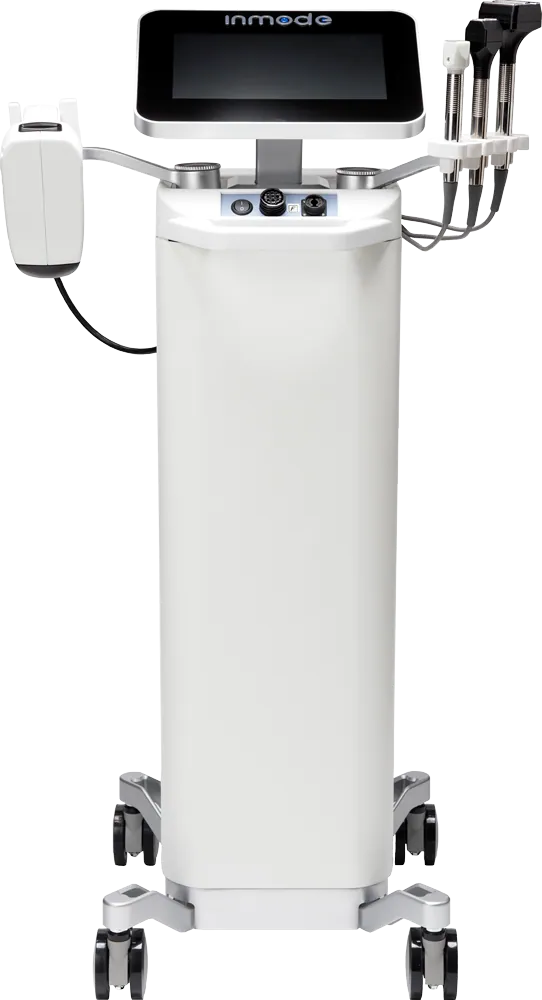

InMode FX

InMode FX

InMode FX
#DoubleChin #Jawline # deep cheek

After lifting, it delivers energy to the fat layer.

InMode FX

InMode FX

InMode FX is MiniFX ApplicatorWith the tissue lifted by negative pressure It is a treatment that delivers high frequency and electrical stimulation. It is primarily used to reduce prominent fat in the lower part of the face.

Especially like a double chin or deep cheek The fat itself is the cause of the volume.In the case of, treatment that only tighten the skin or increase elasticity may not reduce it as much as expected. InMode FX reduces volume by directly injecting energy into the fat layer of these areas.

Even among the same In-InMode equipment, FORMA has a different role. FORMA is a treatment that improves skin elasticity by heating the dermis layer with high frequency.

So, if fat is the main problem, we perform FX, and if skin sagging or loss of elasticity is also present, we may proceed with Poma together.

time taken
time taken
10-20 minutes
Varies depending on energy value
pain
pain
stinging pain
Pain Level: 2/5
recovery period
recovery period
red marks
Lasts 3-7 days
Duration
Duration
cumulative effect
The more you repeat, the more the effect accumulates.
treatment interval
treatment interval
1 month
Recommended for the first 3 sessions

Why InMode FX

The volume created by fat
It won't shrink just by pulling the skin.

InMode FX, while the tissue is held up by negative pressure,
High frequency and electrical stimulation are delivered to the fat layer in sequence.

Point 01

While held up,
Delivers energy to the fat layer.

The applicator uses negative pressure to pull the tissue inward, stably gripping the fat layer. In this state, heat is first delivered via high frequency, followed by short high-voltage pulses. These two processes are executed sequentially during a single operation.

  • Negative pressure — pulls tissue into the applicator groove and fixes it.
  • High frequency 1 MHz — Preheats the trapped fat layer to the target temperature
  • High-voltage pulse — electrical stimulation briefly delivered to a preheated fat layer
01 Tissue acquisition using negative pressure epidermis fat layer 02 Preheating the fat layer with high frequency RF 1MHz 03 High-voltage pulse transmission HVP
Surface temperature cutoff upper limit (maximum 43 degrees) temperature treatment time Target temperature range Automatically cuts off output when the upper limit is reached Measure surface temperature and impedance in real time

Point 02

While continuously checking the temperature
We will proceed.

Skin surface temperature and tissue impedance are measured in real time throughout the treatment . Because energy transfer automatically stops when it reaches a predetermined upper limit You can perform the treatment while maintaining the target temperature range.

  • Acquire

    Securing the organization

    The step of gripping the target area inside the groove using negative pressure

  • Control

    Temperature management

    Monitor surface temperature and impedance and adjust to ensure they do not exceed the upper limit.

  • Extend

    Maintain preheating

    A step that maintains the target temperature to ensure energy is evenly distributed

Point 03

On the face
I use a separate facial applicator.

In-InMode includes BodyFX for large areas and MiniFX for small areas of the face. Because the groove size and output range differ, for narrow areas like the double chin and deep cheek I use MiniFX.

  • MiniFX — For small facial areas, maximum high-frequency output 25W
  • BodyFX — For large areas like abdomen and thighs, up to 50W
  • Max sound pressure 360 ​​mBar, output frequency 1 MHz
MiniFX facial area narrow groove Max 25W Double chin, deep cheek, jawline BodyFX large area wide home Max 50W abdomen, thighs, arms

InMode Line-up

Fat and elasticity
Hold with a different applicator.

InMode depends on which applicator is used
The area being treated and the purpose differ.

Sound pressure, high frequency, high voltage pulse

InMode FX

InMode FX

  • provinceReduce it to refine the lower face line.
  • Areas caused by volume, such as a double chin and deep cheek
  • Grasp tissue with negative pressure and deliver 1 MHz high frequency and high voltage pulses
  • It takes time for the fat layer to clear up, so changes take a few weeks.

High-frequency applicator

InMode Forma

InMode Forma

  • elasticityLift to improve skin texture and sagging
  • Areas with thin skin and concerns about fine lines
  • Heating the dermis to a target temperature causes collagen to contract and be regenerated.
  • Relatively less pain and recovery burden due to the absence of negative pressure

For areas with a lot of fat, improving elasticity alone may not be enough to sufficiently refine the facial contours.
Conversely, if you excessively reduce fat in a face where sagging is the main issue, it may actually make it look sunken.
Therefore, we assess the amount of fat and the degree of sagging together to determine the necessary treatment and sequence.

How It Works

InMode FX Working Principle

1

Negative pressure on the fat layer
Pull up into the applicator groove

Negative pressure suction, tissue fixation
2

1MHz high frequency captured
Preheat the fat layer to the target temperature

High-frequency preheating
3

A high-voltage pulse is transmitted and
Over the next few weeks, the volume was organized

fat layer before the treatment As time passes, I organize

Treatment Areas

InMode FX treatment areas

Divide the face into sections,
The treatment is performed with different output and suction intensities for each zone.

InMode FX treatment Range
side cheek
front cheekbone, front cheek
nasolabial folds
jawline
double chin

The side cheekbones, front cheeks, and side cheeks are areas prone to hollowing out.
For those with cheek hollowing, the treatment is performed while avoiding this area.

Recommended For

I recommend this to people like this.

My side profile is due to a double chin
Someone who is concerned

Only on the face compared to the body weight
People who look overweight

My face because of the deep cheek
Someone who looks heavy

Surgery or incision
For those who feel burdened

Doctor's Column

Treatment Stories written personally by the Director

This is a text written directly by the Director who actually performs this treatment , detailing the principles and standards.

Not only the results, but even the difference in experience

The Episode Difference

Why It's Different

Every process has its own reason for the EPISODE.

01

Whether it is fat or sagging,
First, identify the cause.

Pre- treatment facial analysis

Even if they look like the same double chin, the causes can be different.
There are cases where there is a large amount of fat, and cases where skin and tissue sagging is more significant. During the consultation, the amount of fat, skin thickness, and degree of sagging are assessed together to determine if the area requires InMode FX.

ANALYSIS

02

In the EPISODE Lifting Design Guide
We will proceed accordingly.

EPISODE Lifting Design Guide

Dividing the mid and lower facial areas into 11 zones, the areas prone to sinking and sagging While looking at the indicated EPISODE lifting design guide Divide the areas to reduce fat from the areas to keep. The red boxes are the sinking areas, and the blue boxes are the sagging areas.

  • 01 Under the eyes
  • 02 Eye area
  • 03 nasolabial folds
  • 04 front cheekbone
  • 05 Side cheekbones
  • 06 Front ball
  • 07 Side ball
  • 08 deep cheek
  • 09 Jawline
  • 10 front double chin
  • 11 Side double chin
DESIGN

03

InMode FX is
The treatment is performed while adhering to the time of action (TT).

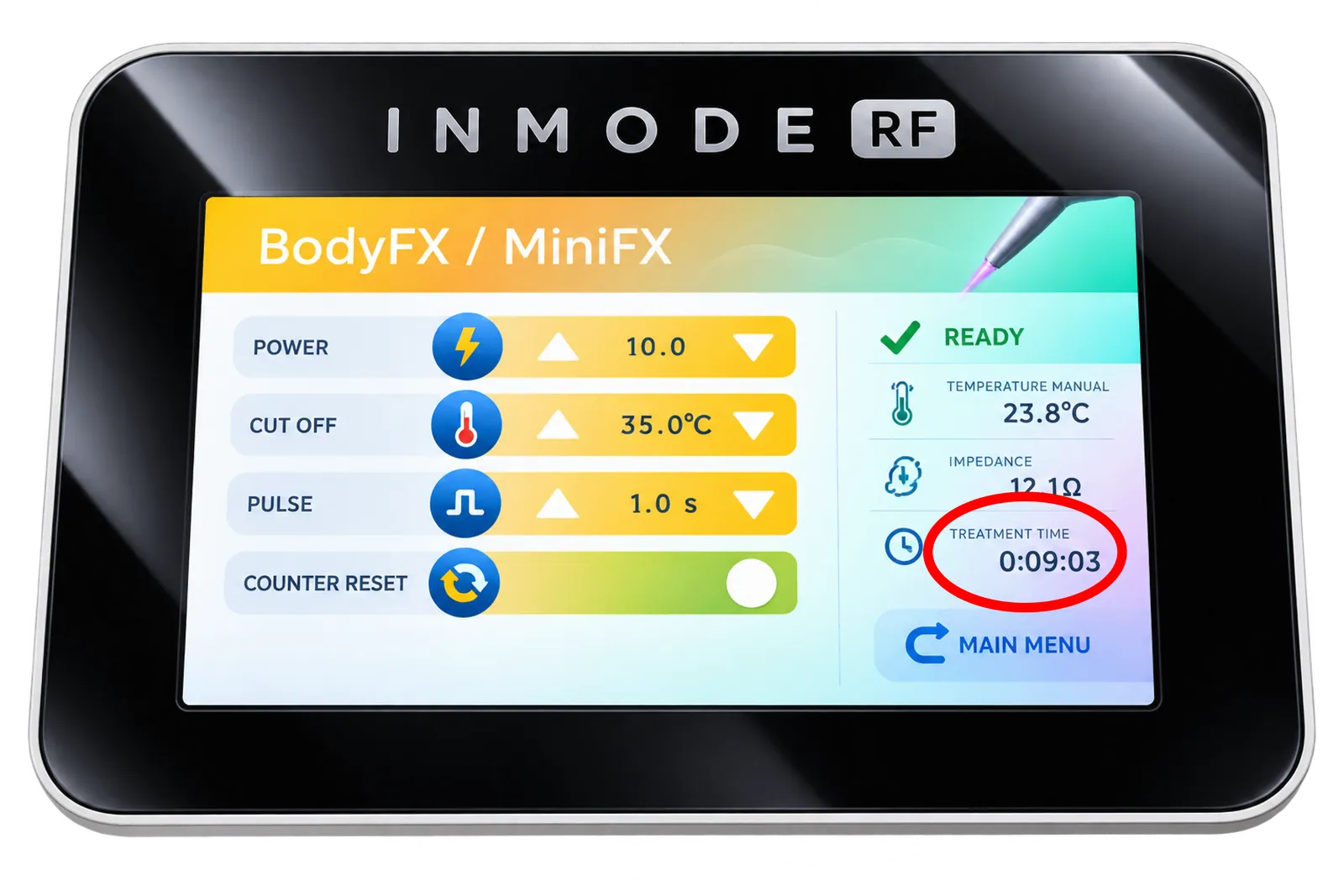

treatment based on duration of action

InMode FX is treatment based on the Treatment Time (TT), which is the actual time during which energy is delivered. For the EPISODE, the required TT is determined in advance, and The treatment is performed until the full time is completed.

TIME

04

If you keep a record
The changes are more visible.

Online treatment Report

The attending physician's comments on the treatment that day, treatment details, and remaining sessions I will leave you an online report of the treatment records to date You can check it at a glance.

RECORDS

Care Process

InMode FX proceeds through this process.

01

Cleansing

02

Check the treatment site

03

treatment

04

Soothing ampoule pack provided

05

homecoming

06

Provision of treatment report

Some processes will be changed for the promotional treatment.

Notice

Instructions for treatment

  • 1

    During the treatment , you may experience a strong pulling sensation on the skin, a burning sensation, and a momentary bouncing sensation. These sensations are caused by the simultaneous delivery of negative pressure, high frequency, and high-voltage pulses and occur only during the treatment. Please inform us immediately if you find it difficult to tolerate.

  • 2

    Suction marks and bruising may remain after the treatment . This is a natural occurrence during the process of holding tissue with negative pressure and usually fades within 1 to 2 weeks. Significant bruising does not necessarily mean the treatment was effective, nor does the absence of bruising mean it was ineffective.

  • 3

    You may experience redness, swelling, and a tingling sensation immediately after the treatment , but these usually subside within a few days. On the day of the procedure, please avoid vigorous cleansing and massage of the treatment area.

  • 4

    Please avoid saunas, steam rooms, hot baths, and alcohol for 2-3 days after the treatment . Swelling and bruising may last longer.

  • 5

    Your skin may become dry for a few days after the treatment . Please pay attention to moisturizing and sun protection.

  • 6

    Since it takes time for the fat layer to shrink, changes appear over several weeks. It is usually repeated multiple times at one-month intervals, and the timing and extent of changes vary from person to person.

  • 7

    If facial fat is reduced more than necessary, the face may actually appear sunken. During the consultation, the amount of fat and the degree of sagging are assessed to determine the scope and number of treatment .
